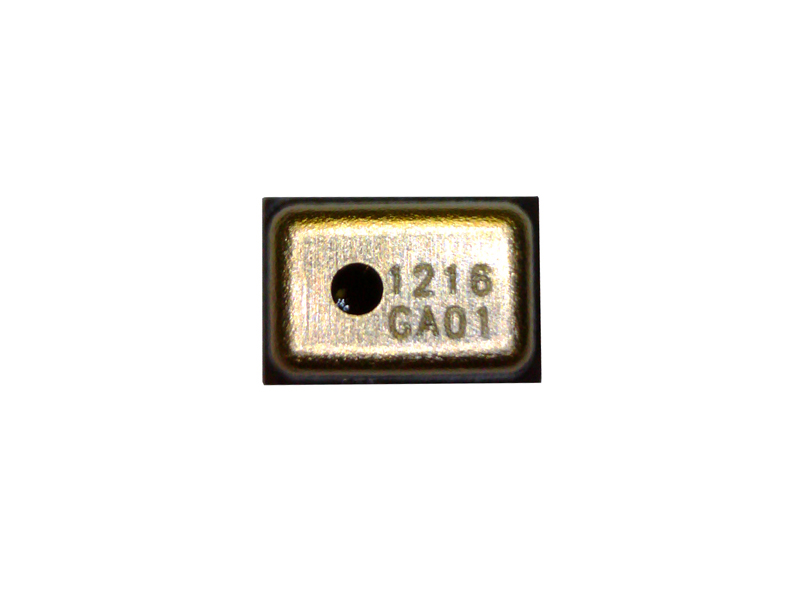

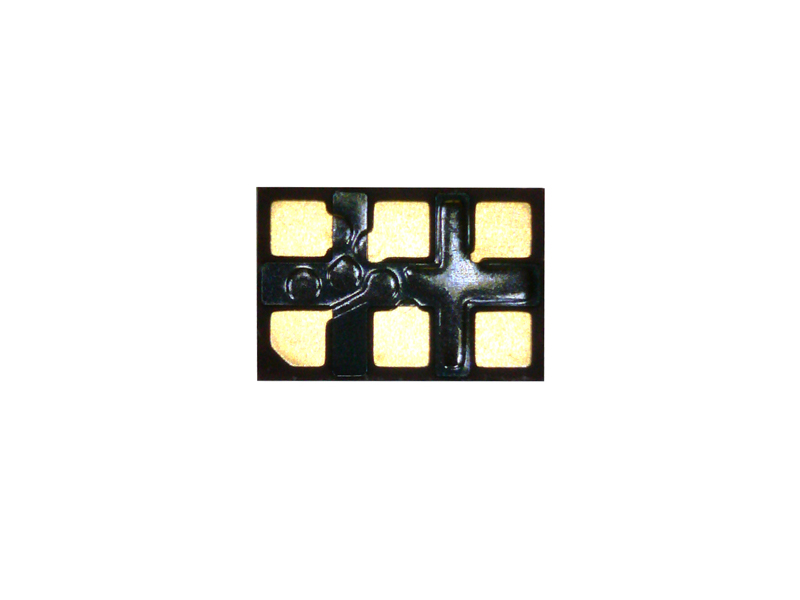

GTM2718DT
【Brief】:Sen:-26±1dB
SNR:62DB(Typ.)
THD(1KHz):≤0.2%100dB SPL
Power supply voltage:1.6V~3.6V
Total Operation Current:800uA(Typ.)
AOP(1KHz, THD < 10%):125dB SPL(Typ.)
【Series】:Product Information

GTM2718DT

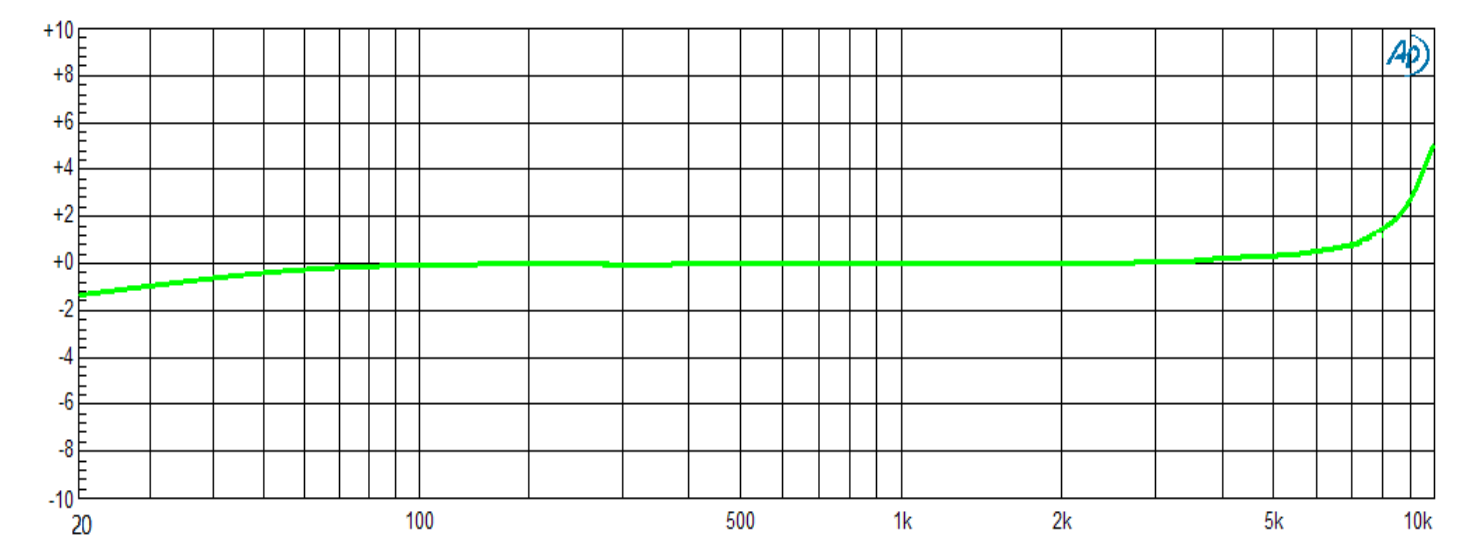

FREQUENCY RESPONSE CURVE


RECOMMENDED INTERFACE CIRCUIT


Sensistivity(1KHz (0 db=1VPa))

-25~-27dB

Specifications

Sen:-26±1dB
SNR:62DB(Typ.)
THD(1KHz):≤0.2%100dB SPL
Power supply voltage:1.6V~3.6V
Total Operation Current:800uA(Typ.)
AOP(1KHz, THD < 10%):125dB SPL(Typ.)
